Press brake

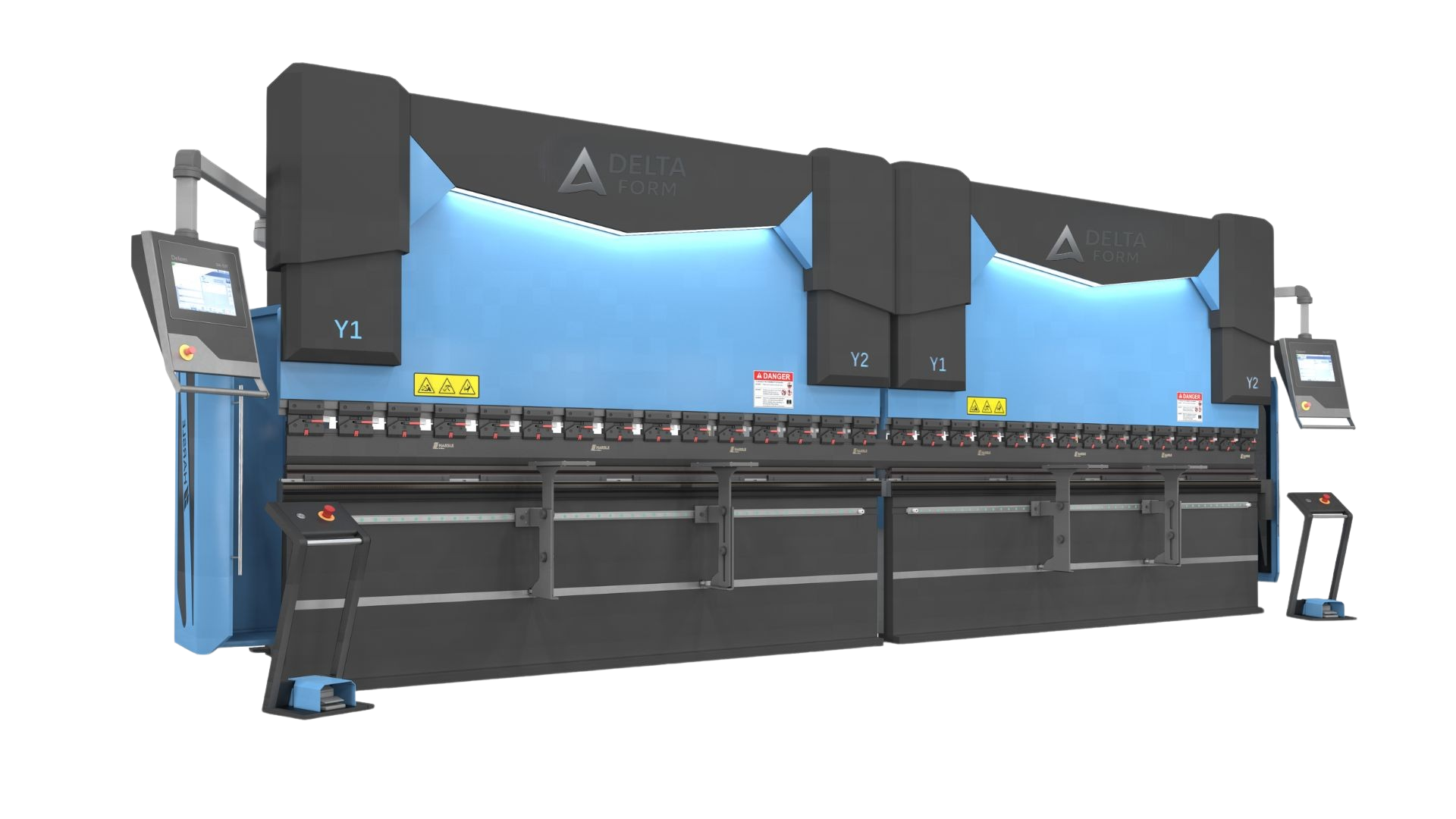

Deltaform flex

Built on a rigid, stress-relieved frame using robotic welding and advanced machining processes, it’s designed to handle demanding bending tasks with consistent accuracy. It features CNC crowning for precise compensation, modular Amada-style tooling, and optional hydraulic or quick-change clamping systems for faster setups.

Request Quote
Standard Equipment

DELEM DA-53T Touch Control

 X+R Back-gauge

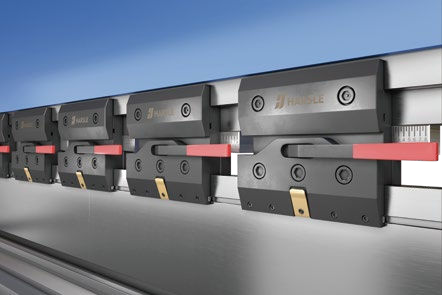

One-key Release Fast Clamp

CNC Motorized Crowning

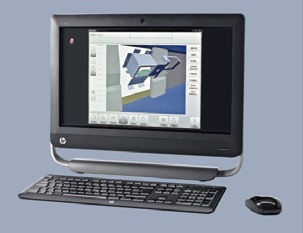

Profile-TL Offline Software

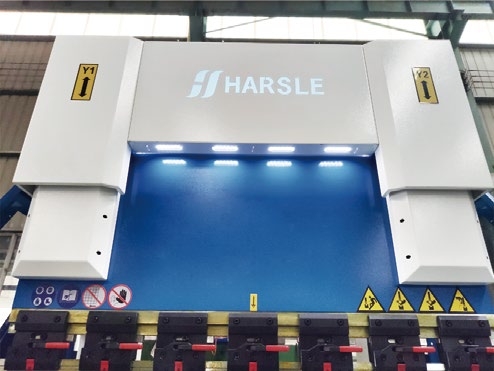

 Working Area LED Lighting

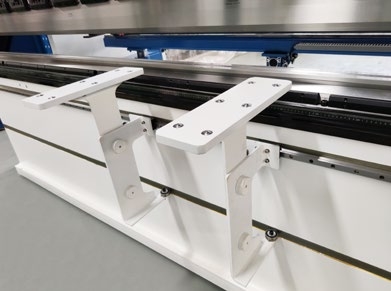

Front Arm on Linear Guide

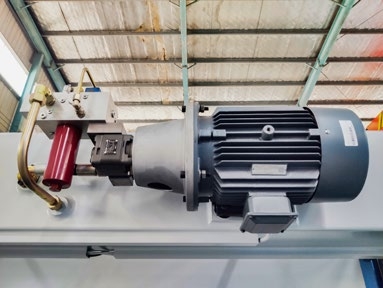

SIEMENS Main Motor

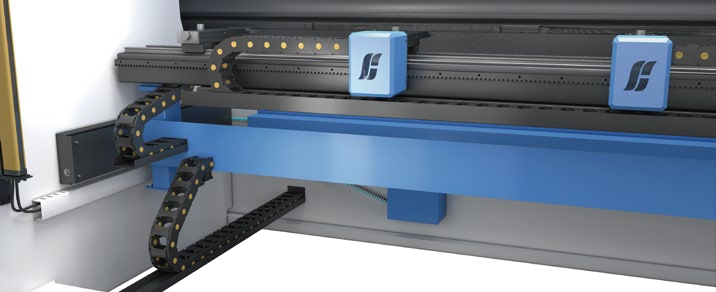

CNC BACKGAUGE

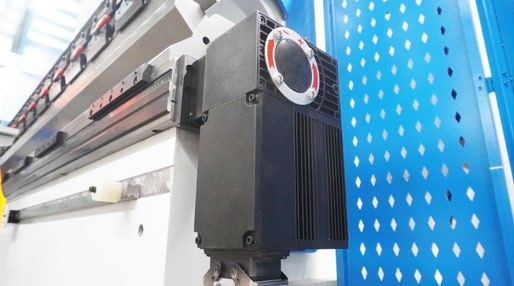

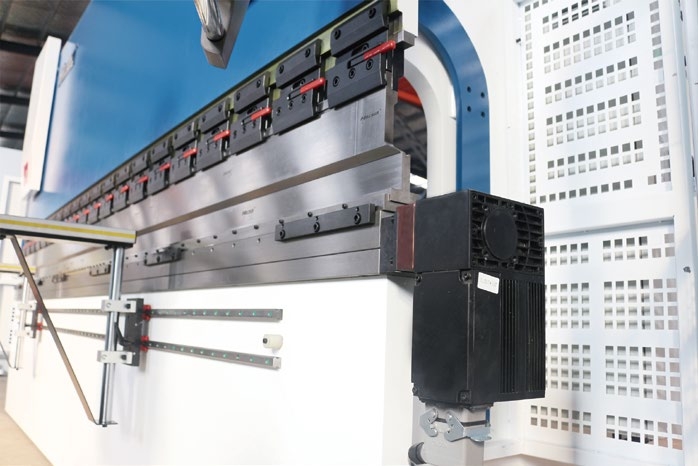

Motorized Crowning

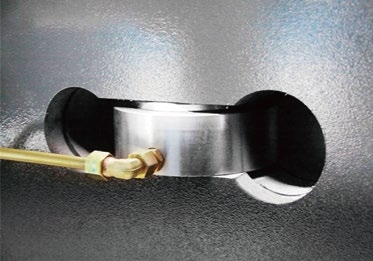

Hydraulic Crowning

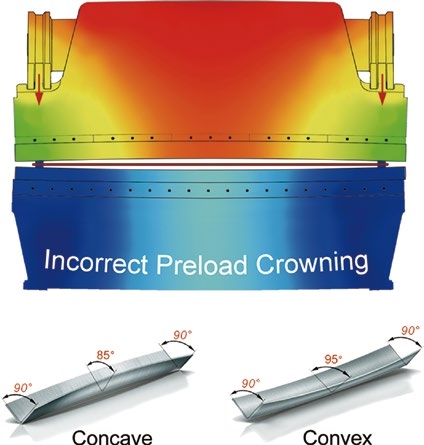

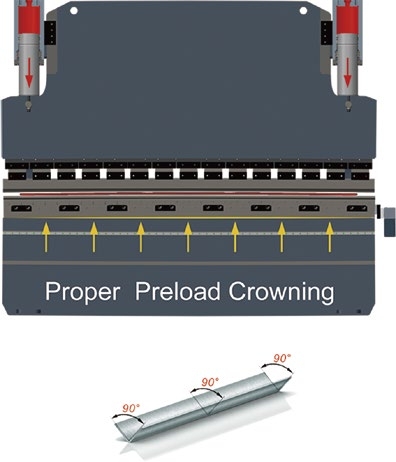

The stress can cause the ram and worktable some deformation during the process of bending; the CNC crowning can make relevant compensation to the ram deformation, which improves the precision of press brake by a wide margin. It is specially applied to make some high precision products, such as stainless steel.

OPTIONAL EQUIPMENT
custom bullet

Brake Tooling: Precision tools for bending, shaping, and forming sheet metal.

custom bullet

Laser Lenses: High-performance lenses for accurate and efficient laser cutting.

custom bullet

Nozzles: Durable nozzles for superior cutting results and reduced downtime.

custom bullet

Maintenance Kits: All-in-one kits to keep your machines well-maintained.

custom bullet

Software Upgrades: Keep your equipment up to date with the latest software features.

  • Servo-Pump Unit

  • Tooling Cabinet

  • Amada Type Tool Clamp

  • Hydraulic Oil Cooler

  • DSP Laser Protection

  • Hydraulic Tool Clamp

  • Robotic Arm For Industry 4.0

Request Quote

DA-58T

CybTouch 8 PS

CybTouch 12 PS

Specifications

Built for precision, our machines feature top-tier specs to ensure optimal performance and durability in every operation.

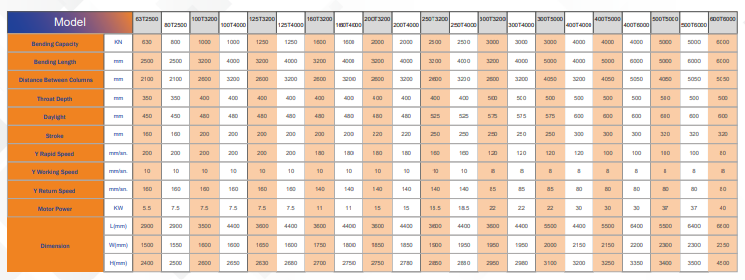

Model Specifications

Models
Capacity
Motor Output
Oil Tank Volume
Speed Approach
Speed Working
Speed Return
Approx.Weight
Bending Lenght
Inside Frames
Side Frame Width
Bed Height
DayLight Opening
Stroke
Tabel Width
Throat Gap
Info
KN
KW
LT
(mm/s)
(mm/s)
(mm/s)
Ton
A mm
B mm
C mm
G mm
K mm
L mm
M mm
N mm
1254x40
400
4
80
160
10
130
3.3
1250
1070
1470
800
455
215
60
410
3106x120
1200
11
140
160
10
130
8.4
3100
2550
1590
880
540
260
60
410
3108x160
1600
15
210
160
10
130
9.7
3100
2550
1600
880
540
260
60
410
3110x200
2000
19
210
150
10
130
10
3100
2550
1590
880
530
260
90
410
3112x240
2400
22
210
130
10
120
11
3100
2550
1610
880
530
260
90
410
3116x300
3000
22
280
1`0
8
100
15
3100
2550
1815
905
660
320
380
500
